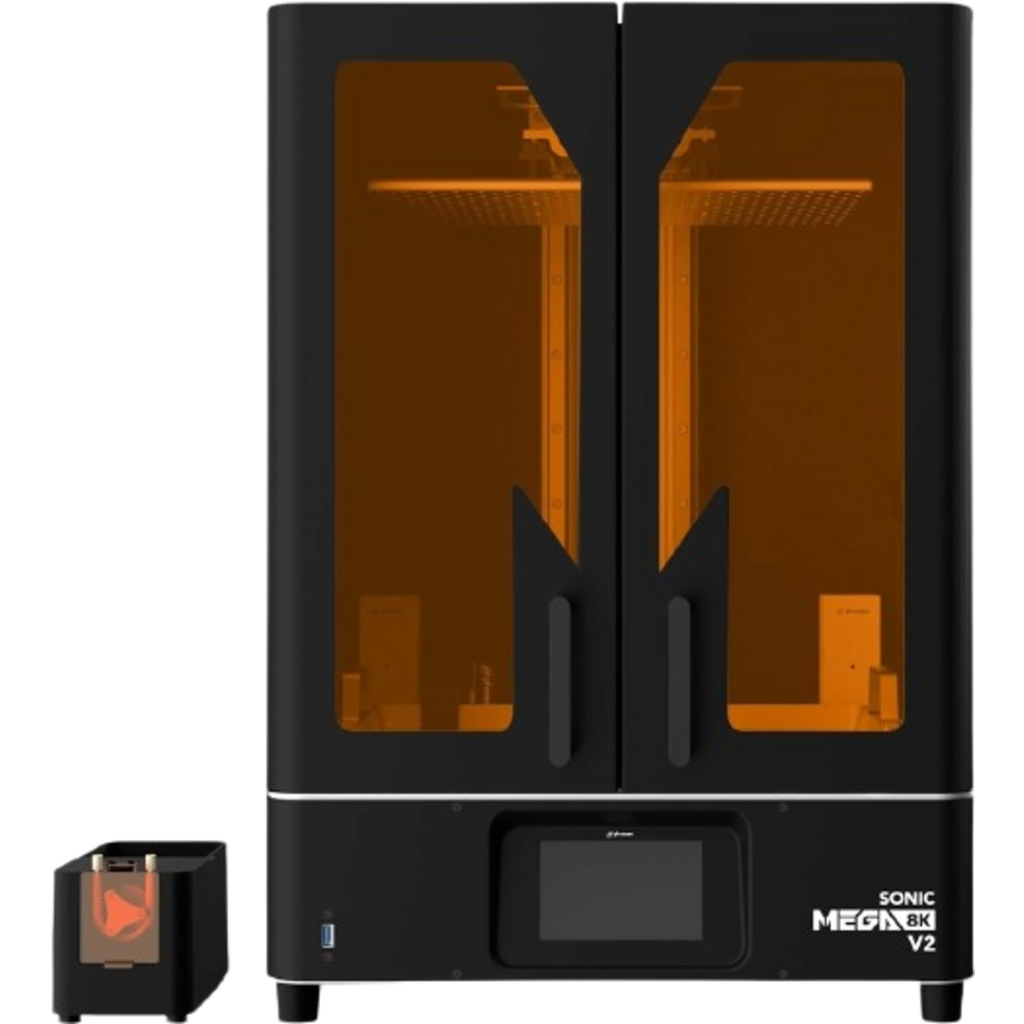

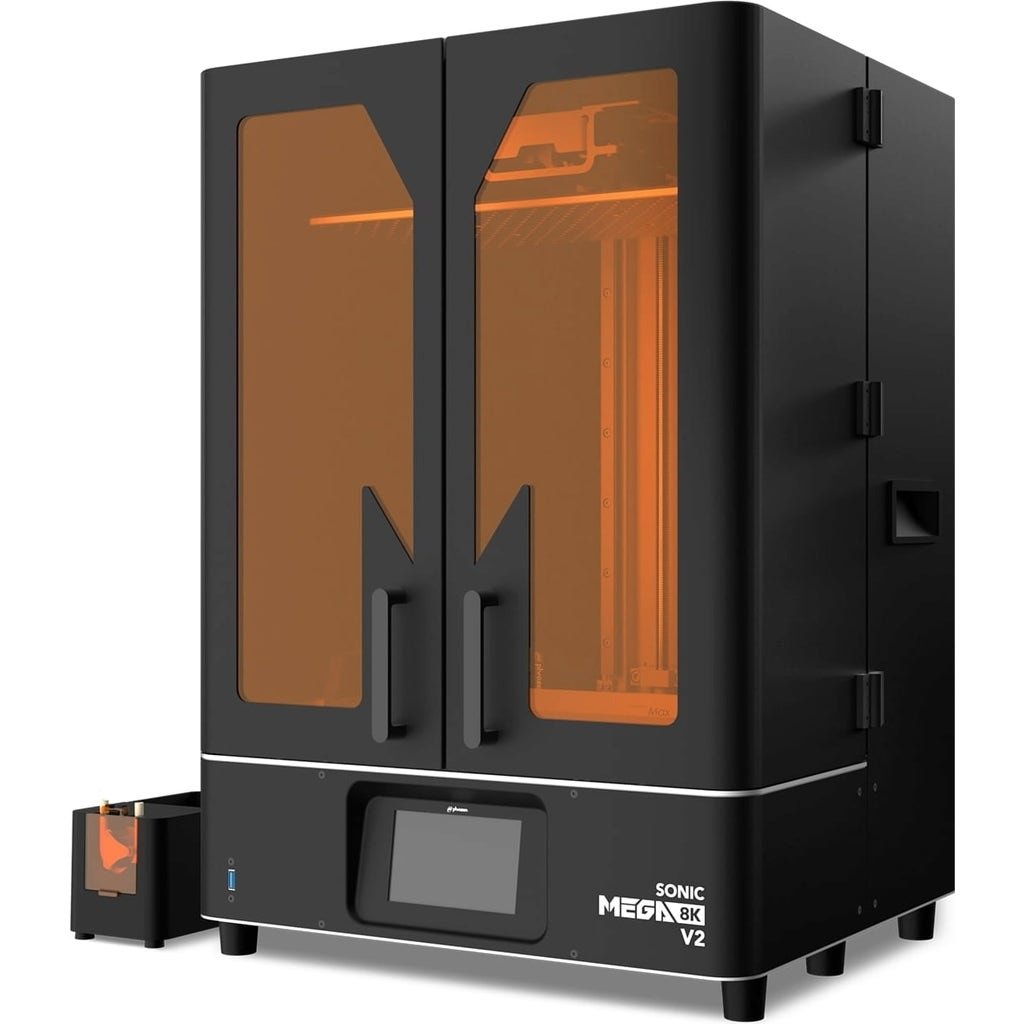

Sonic Mega 8K V2

The Sonic Mega 8K V2 from Phrozen is a large-format resin printer with extremely high precision for detailed work. The resin printer impresses with its sophisticated functions and stands out from the crowd of other resin printers on the market.

Massive print volume for more possibilities

With a build space of 330 x 185 x 400 mm, the Sonic Mega 8K V2 is one of the largest LCD 3D printers on the market. With the large build volume, large-format 3D models and prototypes are brought to life in no time.

High 8K resolution

With an industry-leading 43¦Ìm XY resolution and unparalleled light uniformity, the Sonic Mega 8K V2 offers the finest 8K quality for large format models.

Excellent speed

Thanks to an innovative high-speed system with a powerful CPU, the Sonic Mega 8K V2 supports faster printing settings. For this purpose, the resin printer should ideally be equipped with the latest firmware and an ACF release film. Please note that a consistently high printing speed can shorten the life of the release film and the LCD screen.

Automatic resin feeder with pump & fill function

The automatic resin feeder detects the current resin level in the resin vat and automatically refills as soon as the minimum level is reached. This means you always have enough resin available during large print jobs.

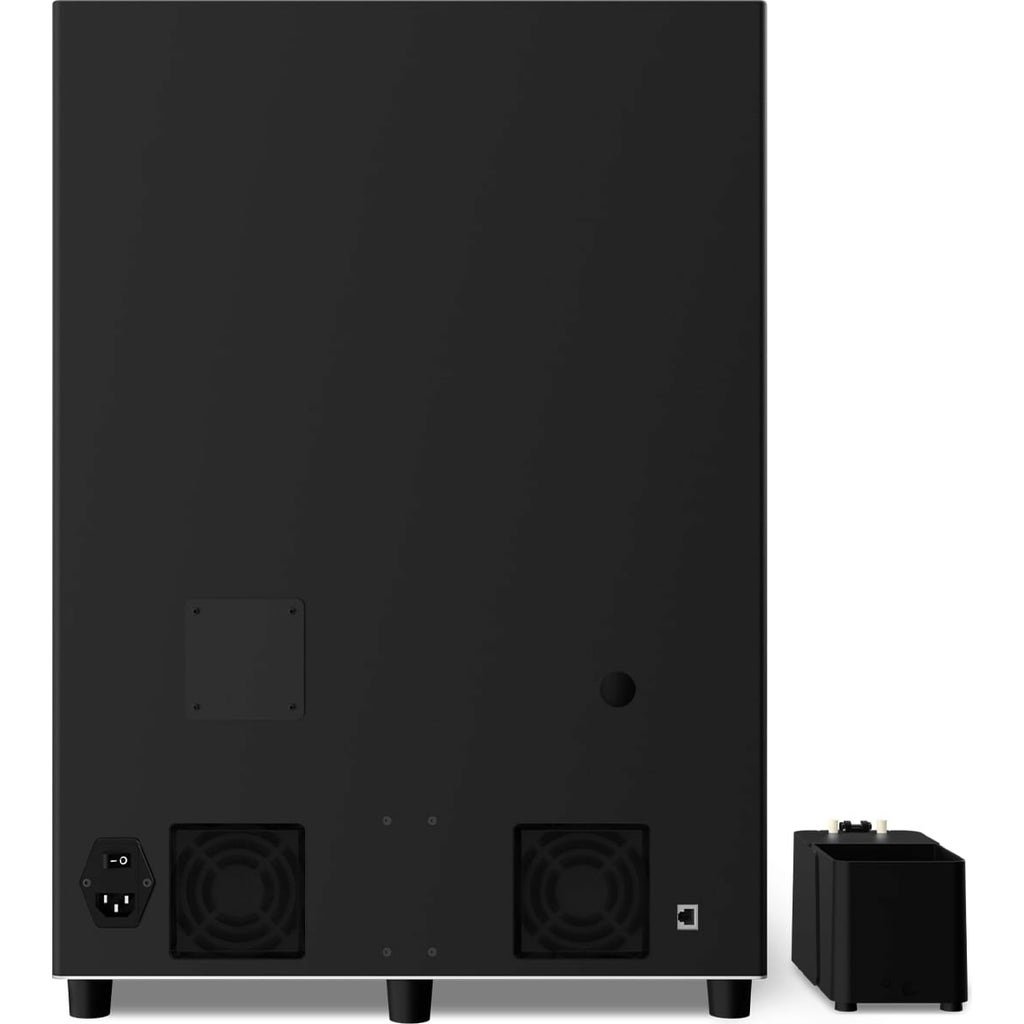

Two plug-in air purifiers with carbon filters

Two plug-in air purifiers with activated carbon filters effectively absorb unpleasant resin odours with twice the power.

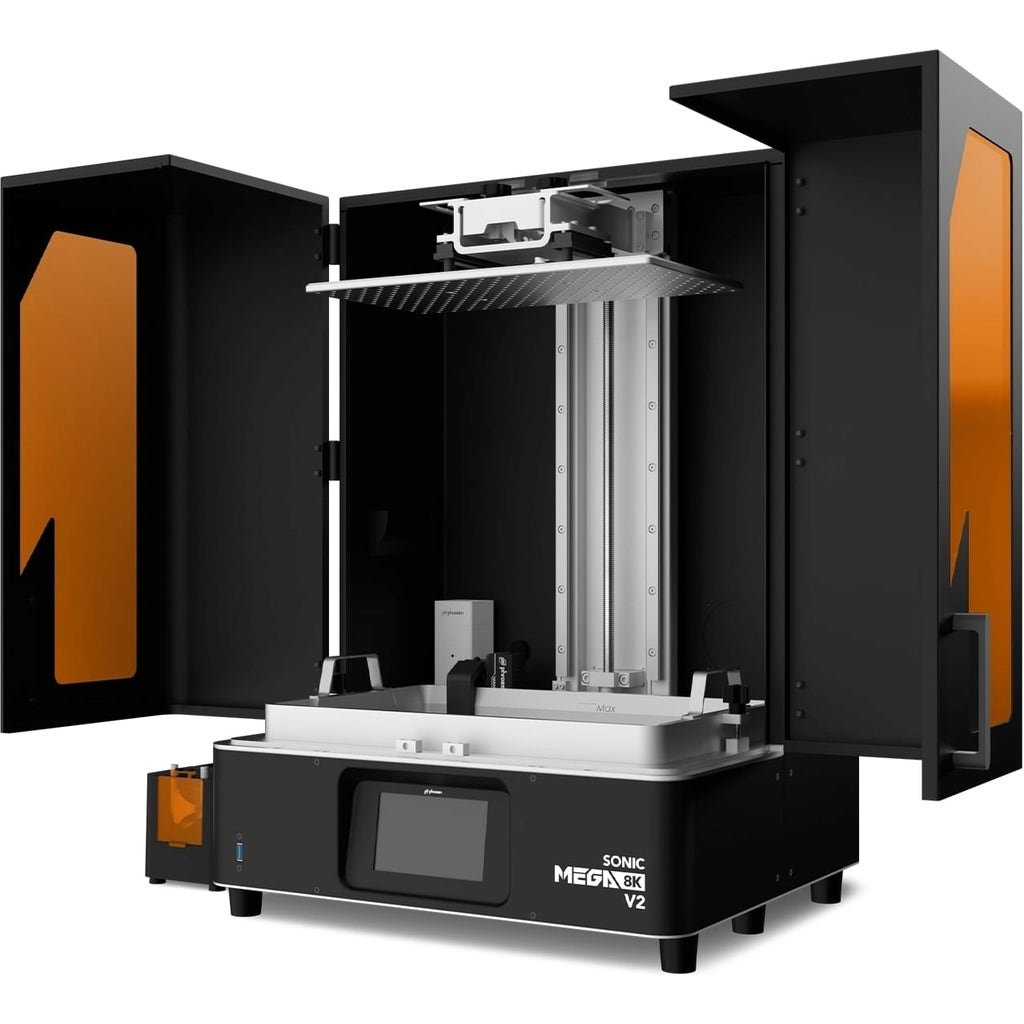

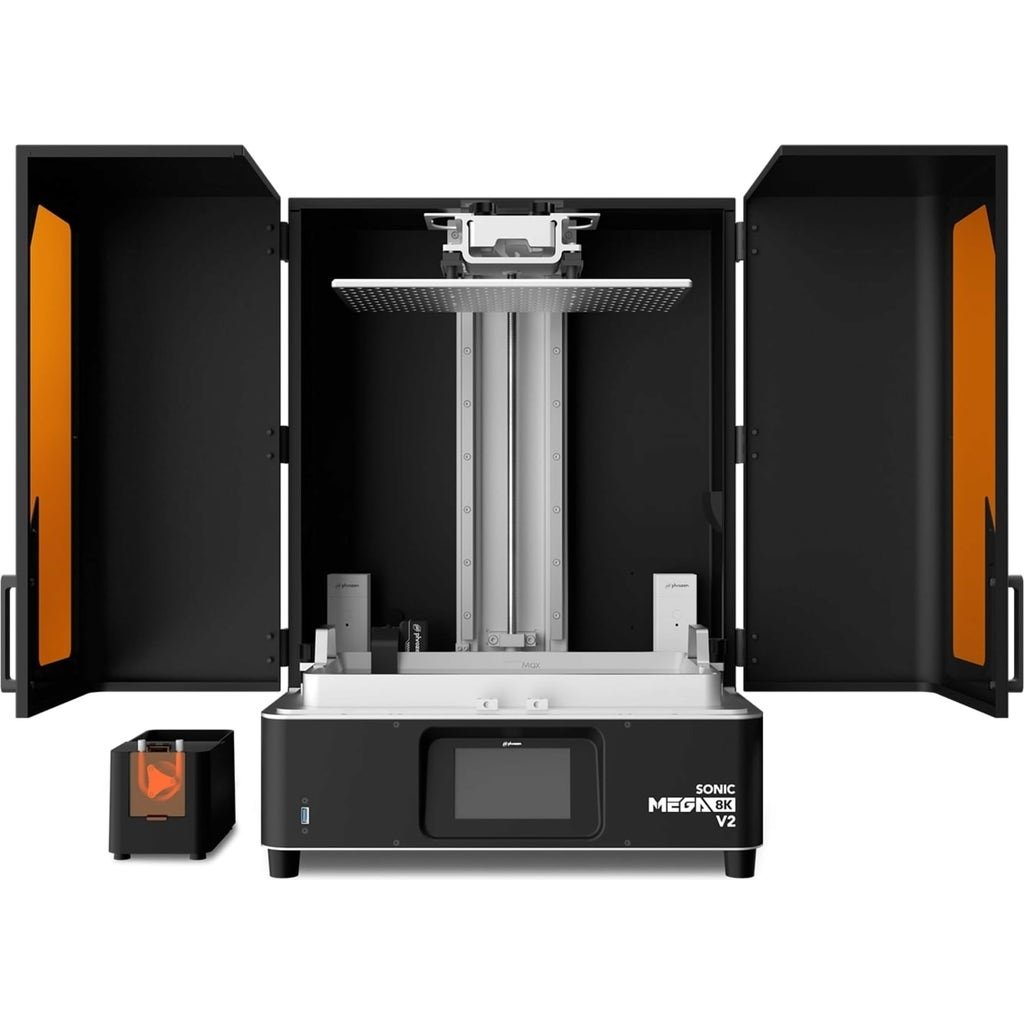

Pre-calibrated build plate with resin drip hanger

A pre-calibrated, perforated build plate reduces peel force and has an integrated resin drip hanger that allows you to ¡°hang¡± the build plate after printing to allow the excess resin on the plate to drip back into the resin container.

Technical specifications:
