SH02 Filament Box

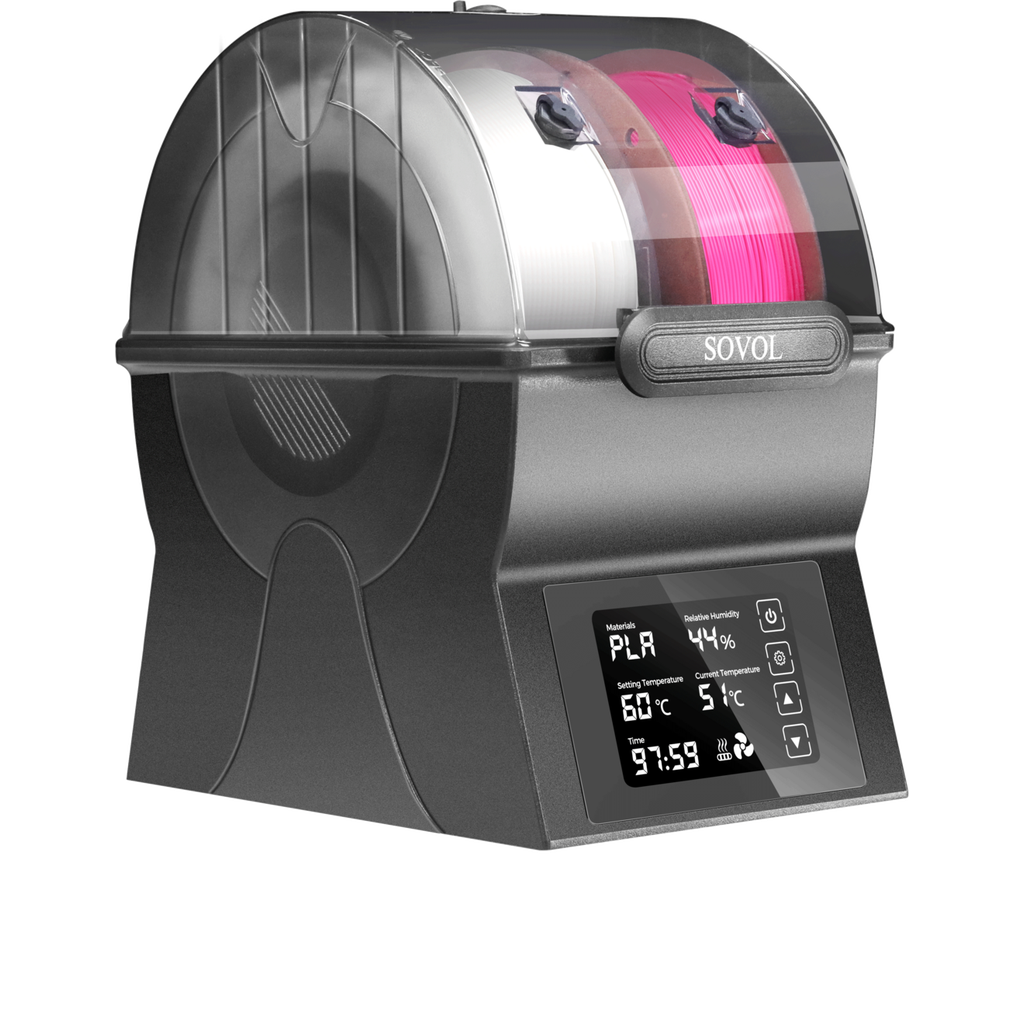

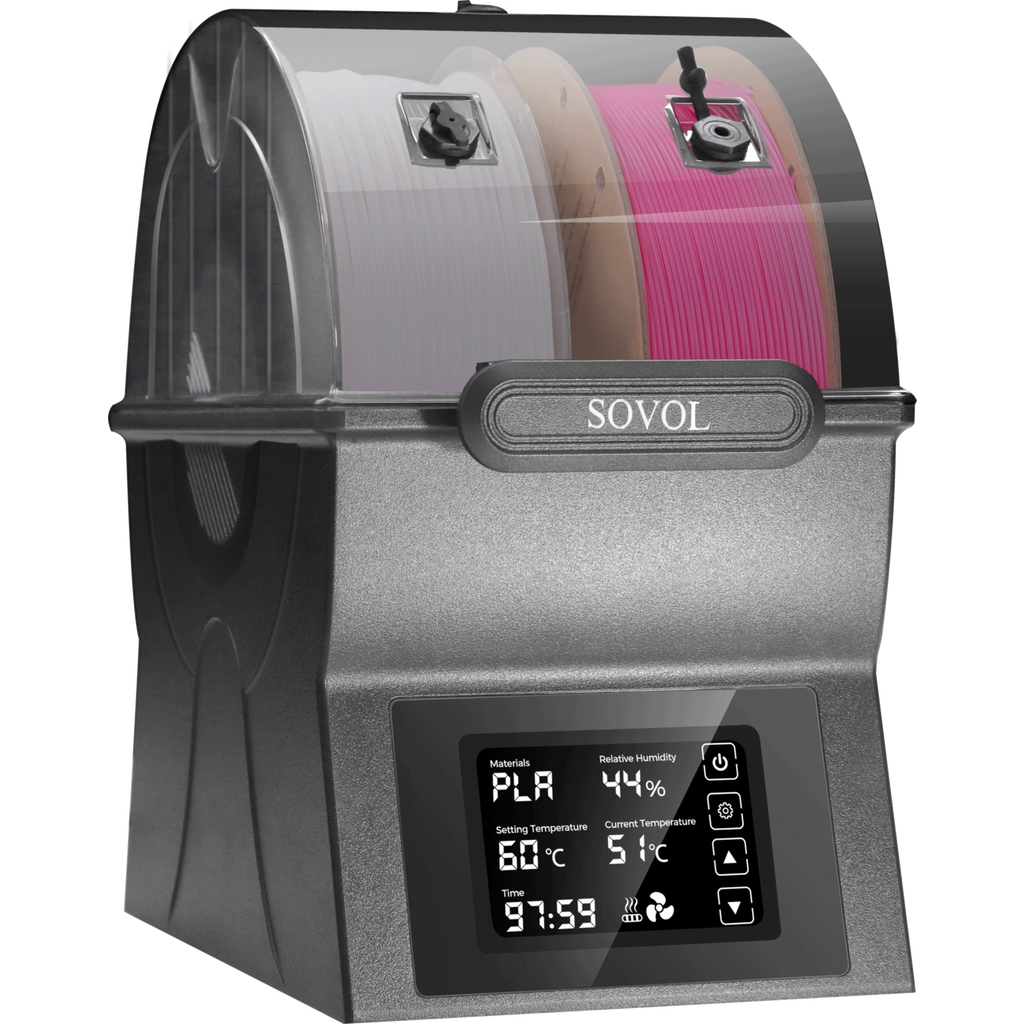

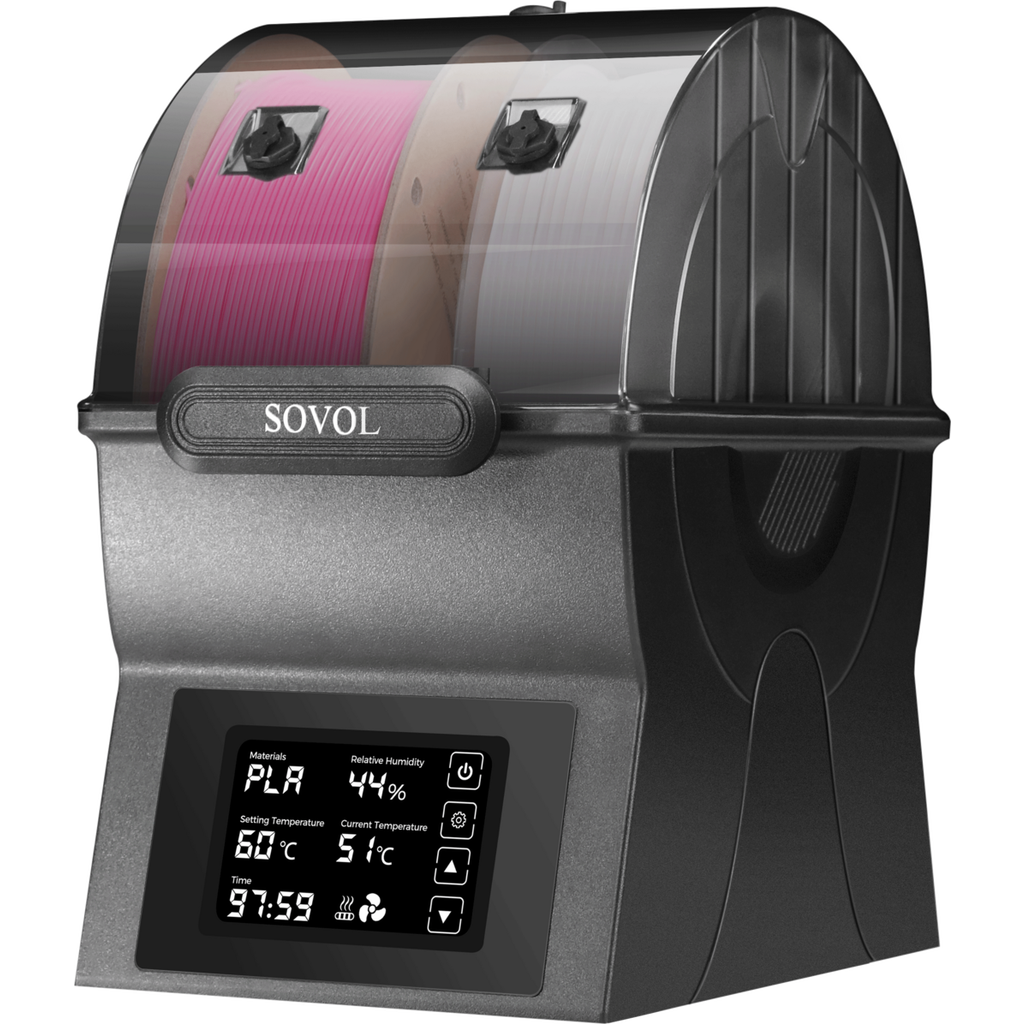

The SH02 Filament Box by Sovol is an intelligent solution for drying and storing filaments.

The box can hold up to two spools, e.g.:

• 2 spools each measuring 200 x 70 mm,
• 1 spool measuring 200 x 150 mm.

Smart operation & user-friendly display

With just one button, you can set the temperature and drying time depending on the type of filament. The preset parameters for PLA, TPU, PETG, ABS, ASA, PVA, PC, PA, and PP simplify the drying process and ensure that your filaments always stay dry!

The user-friendly display allows the following parameters to be read in real time:

• material
• preset temperature
• remaining drying time
• current humidity
• current temperature

Built-in fan with powerful drying system

The drying box is equipped with a 150 W PTC heating element. This heats up to 59¡ãC in just 7 minutes and takes around 25 minutes to reach a temperature of 70¡ãC. A built-in fan allows the hot air to circulate 360¡ã around the interior, ensuring even heat distribution to dry the filaments effectively.

Protection against excessive operating temperatures

As soon as a PTC temperature of over 130¡ãC is detected, the heater switches off automatically. When the temperature drops below 90¡ãC, it switches back on automatically.

An alarm will also sound if the fan is not working properly or the fan outlet temperature is too high.

Drying and printing at the same time

The SH02 can be used both during the printing process and to store filaments when not in use.

Additional features:

• PTFE plug,
• New design with sealing tape for stronger sealing performance,
• Touch screen.
