RaptorX

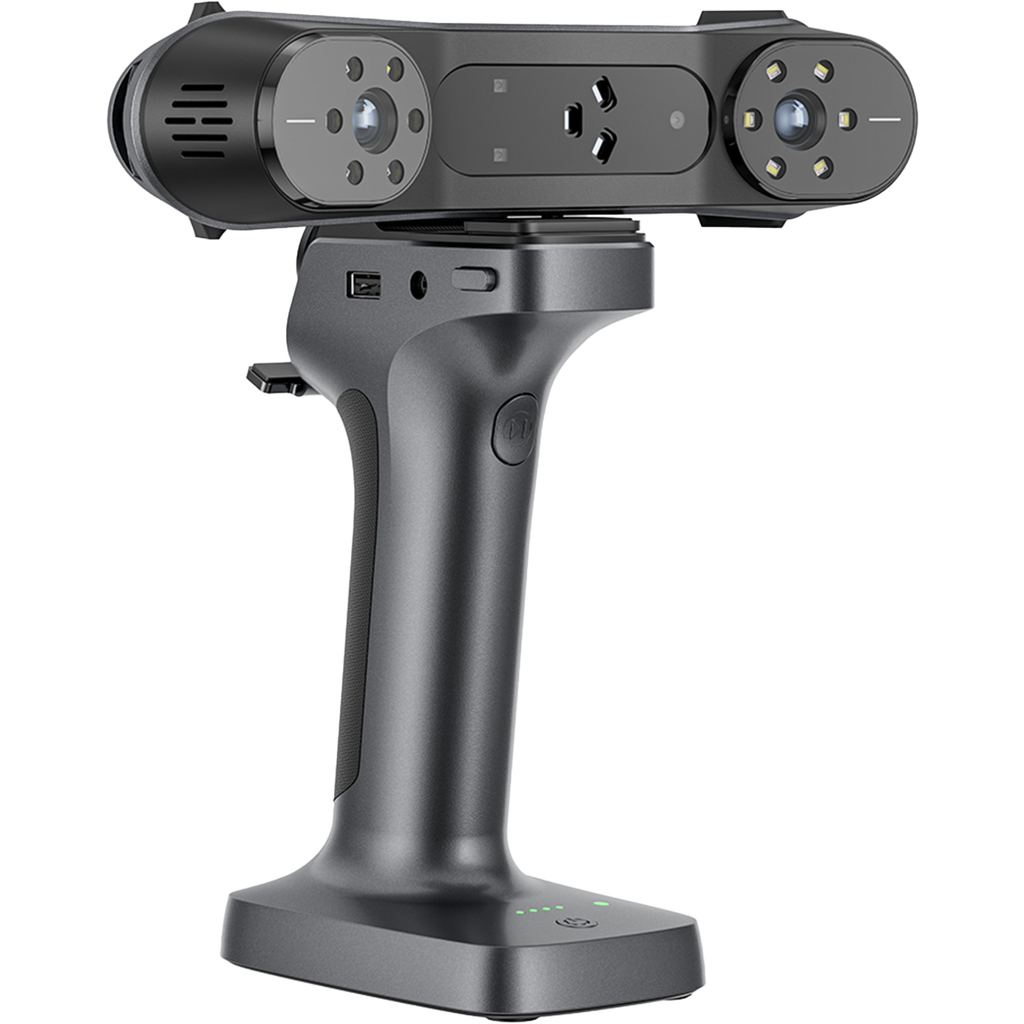

The Creality RaptorX is a portable, hybrid 3-in-1 3D scanner that combines crossed and parallel blue laser lines with NIR structured light to capture scan objects quickly and precisely. The user-friendly scanner is suitable for the digital capture of medium to large-sized objects and opens up numerous new possibilities in the 3D world with its high accuracy, ease of use and innovative technology.

For scanning medium and large objects

The combination of blue laser lines and structured infrared light enables the capture of objects ranging in size from 5 x 5 x 5 mm3 to 4000 x 4000 x 4000 mm3. The 3D scanner effortlessly captures engineering parts, moulds, human bodies, large automotive components and much, much more.

34 + 7 laser lines for high efficiency and accuracy

The Creality RaptorX combines two types of blue laser lines:

34 cross laser lines: their crossed arrangement enables fast and precise capture of 3D data; the 3D scanner captures medium to large-sized objects quickly and effortlessly*;

7 parallel laser lines: each of the 7 parallel laser lines has a fineness of 0.1 mm to efficiently capture sharp edges and precise details. The parallel laser lines are used for partial HD scanning.

* Tip: Even large objects such as a car can be scanned in a single pass, processing up to 1,020,000 points/second ultra-fast and in high quality with a volumetric accuracy of 0.02 mm+0.06 mm/m.

Scanning with structured NIR light

Markerless scanning: The RaptorX does not require markers to achieve perfect scanning results. Thanks to the one-shot 3D imaging technology, the 3D scanner is stabilised, making it less prone to tracking loss. The fast retracing speed ensures a smoother handheld scan.

Face and body algorithm: A unique mapping algorithm captures even more details on the human body and can even easily scan hair ( Tip: The human body scan only takes 2 minutes!)

High-speed scanning

The RaptorX works at breakneck speed:

• Laser line scanning reaches speeds of up to 60 fps,
• Scanning with structured infrared light achieves speeds of up to 30 fps.

Quickly rechargeable battery

The Creality RaptorX uses a powerful battery that charges to 80% in just 1.5 hours, ensuring a long operating time. This means you can spend a long time scanning any object outdoors without worrying about the battery dying.

• Magnetic setup
• Practical battery indicator
• 35400 mWh capacity

High-performance structure

• 2.3 million pixel 3D image camera,
• Lens with low distortion (less than 5%),
• ¦Õ20 mm lens with a large depth of field,
• 9-layer glass lens,
• Metal lens barrel and mount.

An advanced temperature compensation algorithm can improve temperature stability and ensure accuracy.

Additional features:

• Portable and wireless,
• Shake-free, smooth and efficient scanning through one-shot 3D imaging technology,
• Only 405 g weight,
• Blue light as additional light for scanning laser lines, white light to increase the brightness of the colour texture,
• 24-bit full-colour scan,
• User-friendly design with ring indicator light and button operation, anti-slip cover and removable cord,
• Supports outdoor scanning,
• Intuitive, user-friendly CrealityScan software (faster processing time, partial HD-Scan, point cloud editing, face and body mode, easy calibration, etc.),
• Extensive compatibility with 3D printing and design software (e.g. Geomagic Control X, Geomagic Design X, Verisurf Inspect),
• Innovative data compression algorithm for fast and easy transfer of scans via WiFi 6 (transfer rate 4.7 Gbps) or USB-C connection,
• Detection of black and metallic objects even without scanning spray.
