Miraco

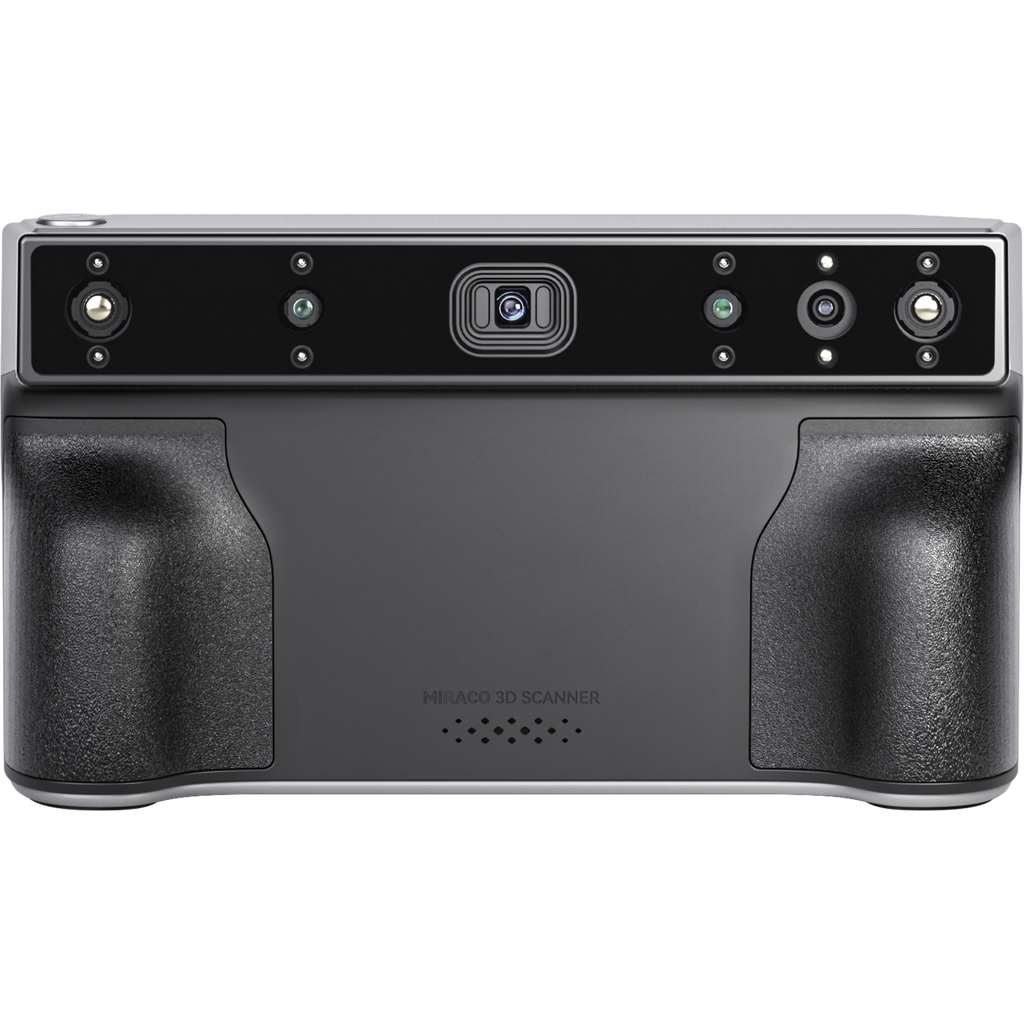

The MIRACO from Revopoint is a powerful all-in-one 3D scanner for small and large objects. With its advanced quadruple-depth camera system, it comprehensively covers the object being scanned while achieving high accuracy and resolution. The ultra-light scanner weighs just 750g, fits comfortably in the hand and can be easily transported for greater flexibility.

Key differences between MIRACO and MIRACO PRO:

The MIRACO 3D scanners are equipped with a 2.4GHz 8-core processor and a 256 GB hard drive. While MIRACO already works perfectly with 16 GB of RAM, MIRACO PRO has 32 GB of RAM. For example, MIRACO PRO is better suited for scanning large objects because the scanner can capture a higher number of images. Both 3D scanners have close calibration boards, MIRACO PRO also contains remote calibration boards.

• MIRACO: captures up to 5000 images for non-colour scans and up to 4000 images for colour scans,
• MIRACO PRO: captures up to 10000 images for non-colour scans and up to 8000 images for colour scans.

Features at a glance:

• Weight of only 750 g,
• Up to 0.02mm precision and 0.05mm accuracy,
• Scan speed up to 15 fps,
• 8K colour capture with a 48-megapixel RGB camera,
• Two capture modes: single-shot and continuous mode,
• 6-inch AMOLED screen with 180¡ã angle,
• 9-axis IMU,
• Up to 2 hours of scanning, 50-watt fast charging function.

Two shooting modes

Single-Shot Mode: Captures objects with precise tracking, high accuracy and minimal point cloud overlap - even in difficult-to-manage environments.

Continuous Mode: Ideal for quick scans. Achieves scanning speeds of up to 15 fps in near and far mode.

? NOTE: While close mode is perfect for capturing intricate details, long distance mode can even quickly capture entire objects.

Uncomplicated operation and handling

The MIRACO is a standalone scanner. You don't necessarily need a PC to use it, because you can capture the desired objects on-the-go and edit them directly on the screen. If you do want to edit your scan projects on your PC, you can easily transfer them using MIRACO's lightning-fast Wi-Fi 6 or USB Type-C 3.1 port.

? Requirements for your PC:

• Minimum: Intel i5, 8GB RAM,
• Recommended: Intel i7, 16 GB RAM.

Thanks to the screen mirroring function, you can connect MIRACO to a television and all types of monitors.

48 megapixel RGB camera

Colourful objects are captured by MIRACO just like any other! With the 48 megapixel RGB camera you can create textured 3D models in colour as well as impressive structures in high resolution.

6-inch AMOLED display

The MIRACO is equipped with a touch-sensitive 6-inch 2K AMOLED display. This can be tilted 180¡ã for maximum flexibility and can even be folded up for selfie face scans.

2 hours operation and 50-watt fast charging

Thanks to a 5,000 mAh battery, MIRACO allows you to scan for up to two hours without interruption and in peace. Thanks to the 50-watt quick charging function, the scanner charges to 80% in just 35 minutes.

Included:

• 1 x MIRACO 3D Scanner
• 1 x tripod
• 1 x Mini Turntable & Pattern Bust
• 1 x Turntable Attachment
• 1 x Turntable Power Cable
• 1 x Near Mode Calibration Board
• 2 x Magic Mats
• 1 x Wrist Strap
• 1 x 65W Dual USB Type-C Port Power Adapter
• 1 x USB Type-C to C cable (1.8 m)
• 1 x Cleaning Cloth
• 1 x Marker
• 1 x Certificate and Warranty Card
• 1 x Scanner Storage Bag

Technical specifications:
