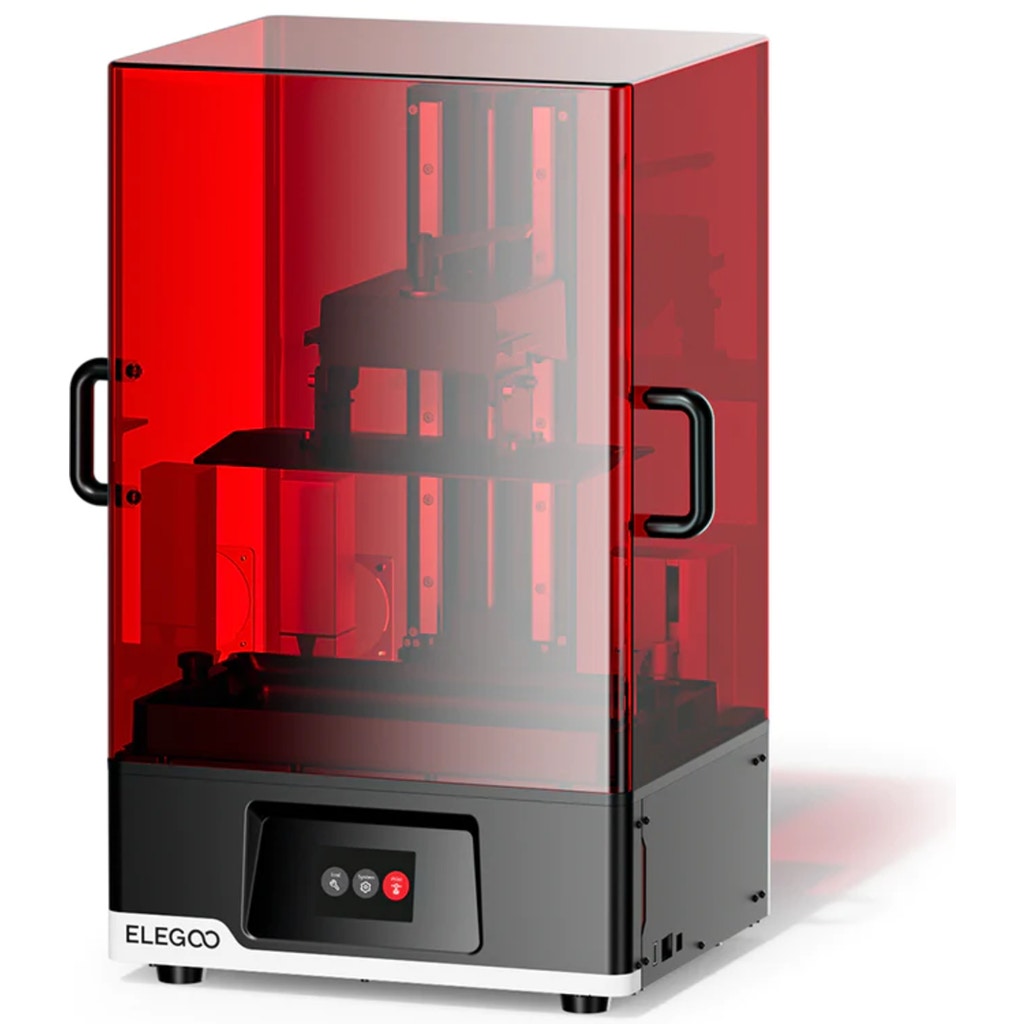

Jupiter SE

With an impressive build volume of 277.85 x 156.26 x 300 mm, the Jupiter SE from Elegoo enables the implementation of creative ideas even on a large scale. The resin printer impresses with a 12.8 inch 6K monochrome LCD display and an XY resolution of 51 ¦Ìm, ensuring razor-sharp details and taking your printing projects to a new level.

Spacious build volume

With a build volume of 277.85 x 156.26 x 300 mm, large works of art or multiple components can be printed with ease in a single pass. The resin printer is therefore perfect for professional or commercial use.

Stable construction

The double linear guide rail of the Z-axis with an accuracy of 0.02 mm can achieve stable and precise movements of the Z-axis during the printing process.

12.8-inch monochrome LCD screen

The Jupiter SE uses a 12.8-inch 6K (5448 x 3064 pixels) monochrome LCD display with an XY resolution of 51 ¦Ìm. The resin printer is able to precisely capture every little detail, sharp corners and edges, even on complex models.

Refractive COB light source

The Jupiter SE combines a COB light source with a refractive lens. Not only does this reduce light scattering, but it also makes light distribution more uniform, resulting in surfaces being smoother, details sharper and dimensions more accurate.

Automatic resin management system

To make handling the resin as easy as possible, the resin printer has an automatic mechanism for supplying the resin or pumping it out after printing is finished.

Thanks to the automated device, the printer is continuously supplied with resin. The remaining resin is pumped back after the printing process is completed or ¡°recycled¡± for later use. On the one hand, this saves you time-consuming cleaning, but on the other hand, you also save money!

Efficient heat dissipation system

For efficient heat dissipation, there are powerful fans and special heat-conducting copper tubes on both sides of the COB light source.

Laser cut build platform and automatic levelling

The laser-cut surface of the Jupiter SE build plate ensures excellent adhesion and easy removal of the printed models. The building board is automatically levelled and easily installed and removed with a twist handle.

Other features:

• Updated USB Air Purifier,
• Updated 2.0 PFA film,
• Effortless slicing in VoxelDance Tango, Chitubox or Lychee,
• 3.5-inch touchscreen.

Included:

• 1 x Jupiter SE
• 1 x USB Air Purifier
• 1 x Building Platform
• 1 x Resin tank
• 1 x U disk
• 1 x Mask
• 1 x Gloves
• 1 x Funnel
• 1 x Locking Screw Set
• 1 x User Manual
• 1 x Adapter
• 1 x Tool kit
• 1 x Spatula
• 1 x Auto Resin Feeding Main Module
• 2 x Bottle Cap Module
• 2 x Cover Handles

Technical specifications:
