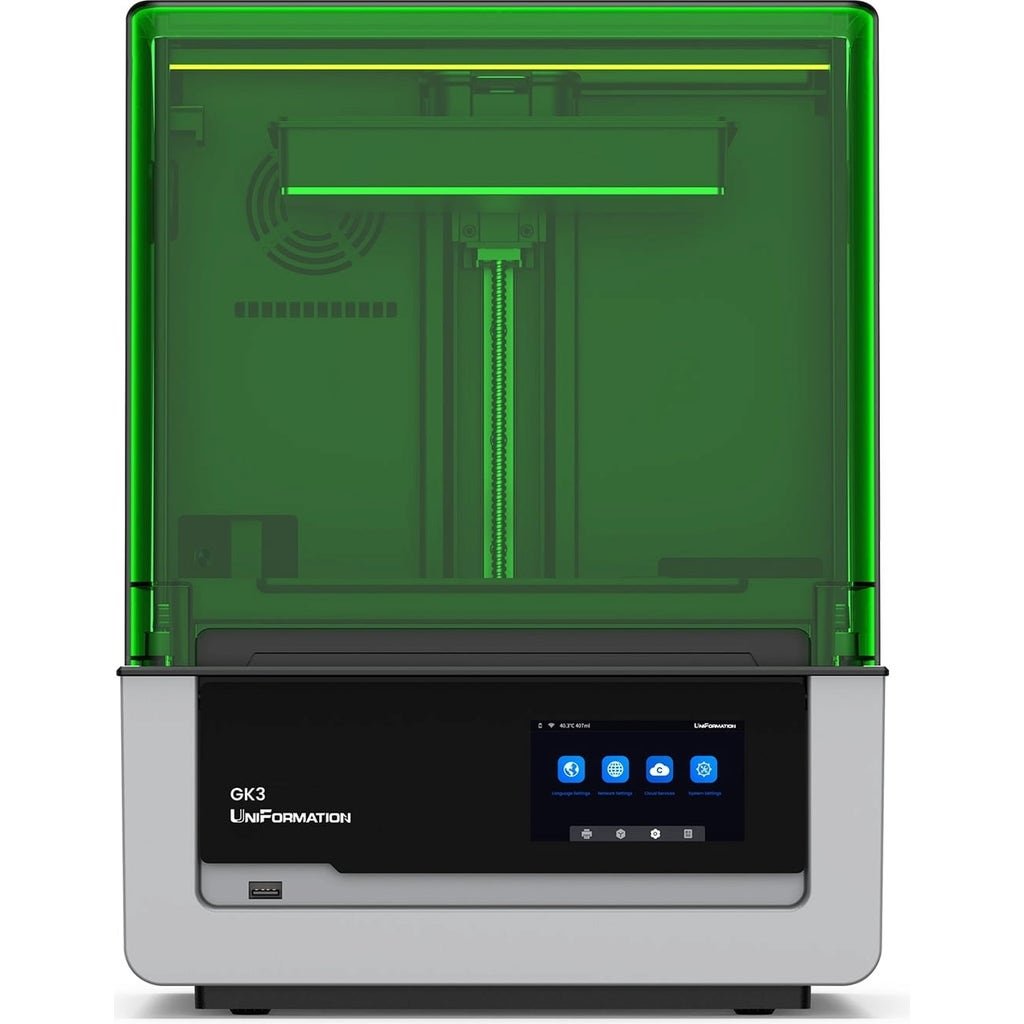

GK3

With ground-breaking features and smart technology, the GK3 from UniFormation takes your creative projects to a whole new level. Perfect precision, maximum efficiency and user-friendly operation - high-quality results can be that easy!

?The main difference between the GK3 and GK3 Pro lies in the light source. The GK3 uses a 405 nm UV light source, while the GK3 Pro is equipped with a 385 nm UV light source. The shorter wavelength of the GK3 Pro allows for more precise control when curing the resin, resulting in finer details and higher print accuracy. Furthermore, the GK3 uses an nFEP film and the GK3 Pro uses a CPFA film.

Note! The GK3 is available with either a T-screw or a ball-screw on the Z-axis. What's the difference? The T-screw version is slightly cheaper, while the B-screw scores with even more stability - a plus, especially for demanding printing projects. Both deliver strong results, but you can still decide which is more important to you!

• GK3 with B-Screw: Made for ambitious applications in the workshop and production. Equipped with a high-quality ball screw on the Z-axis, it offers excellent stability - ideal for frequent and precise print jobs.

• GK3 with T-Screw: If you're new to 3D printing or looking for an uncomplicated device for home use, this version of the GK3 is made for you! The Z-axis with T-Screw gives you solid results at a fair price.

16K display for more detail

With a display resolution of 15120 x 6230 pixels and XY resolution of 14 x 19 ¦Ìm, the 9.6 inch display enables incredibly fine details and an impressive visualisation of your designs.

COB light source & Fresnel collimator lens

The finely calibrated Fresnel lens not only ensures precise light guidance and reduced light scattering, but also guarantees even and powerful light emission (405 nm). The result is a clearly defined, consistent light beam that precisely cures even the smallest details.

Smart Resin Feeding System

No more empty resin containers! The automatic resin feeding system monitors the fill level and ensures a continuous supply throughout the entire printing process. Simply insert the included resin cartridge and enjoy smart printing!

Intelligent heating system

Forget manual settings! The automatic heating system with a preheating function ensures constant temperatures and efficient printing! The printer reaches operating temperatures of 0-25 °C in just 35 minutes - perfect for your workflow.

Integrated camera for smart monitoring

Thanks to the built-in camera, you can always keep an eye on your printing process. Whether it's real-time monitoring or impressive time-lapse recordings - you can share your creative results with the world effortlessly!

User-friendly design

• UniFormation Smart App,
• Building platform with quick-release design,
• Resin drip hanger design,
• 90¡ã rotating touch screen.

Included in delivery:

• 1 x GK3 3D printer
• 1 x build platform
• 1 x Resin Vat
• 1 x power cable
• 1 x USB stick
• 1 x Screen Protector
• 1 x nFEP film
• 1 x USB WiFi
• 1 x Funnel
• 1 x Metal scraper
• 1 x pair of pliers
• Tools

Technical specifications:
