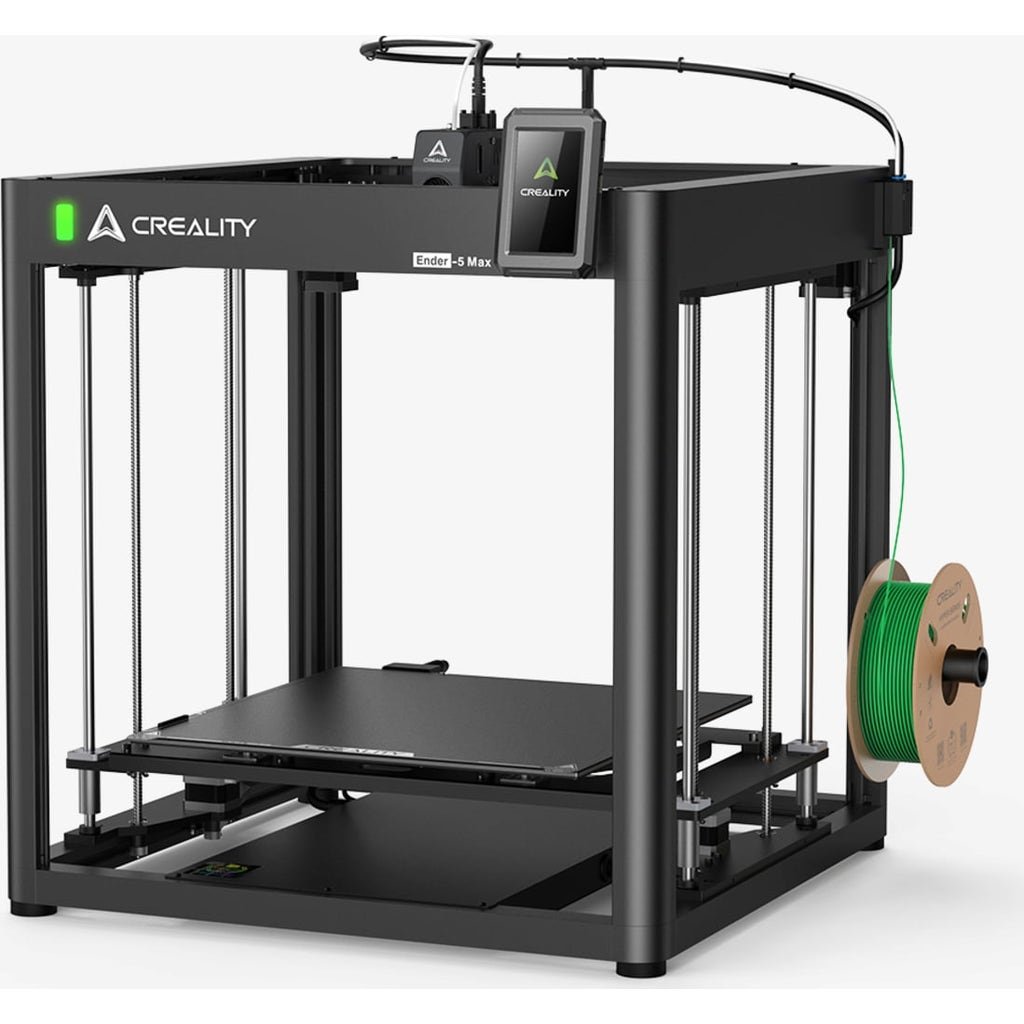

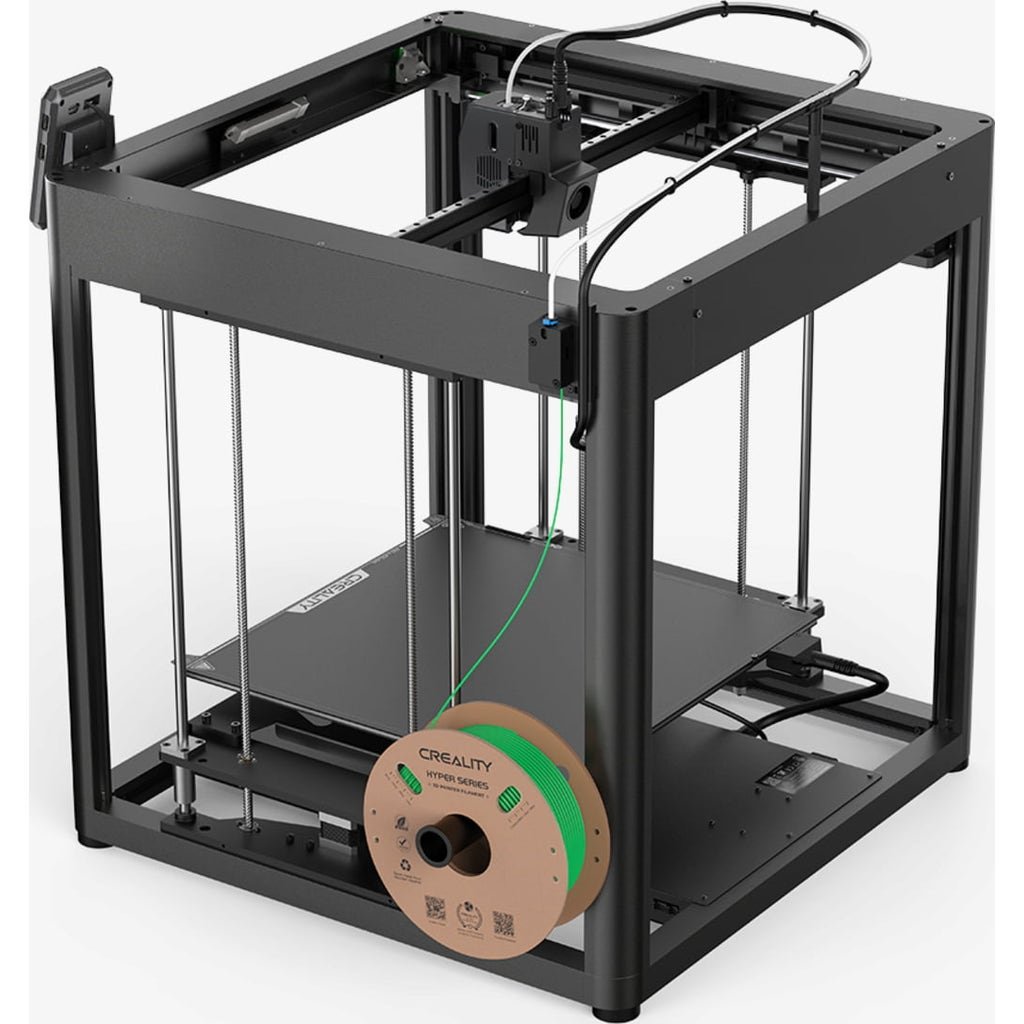

Ender 5 Max

With Creality Ender 5 Max you don't have to make any compromises - neither in terms of size nor performance. With its gigantic build volume and numerous professional features, this CoreXY printer is the reliable partner for your creative and professional projects.

More space for big ideas

With an impressive print volume of 400 x 400 x 400 mm, the Ender 5 Max offers plenty of space for your creativity. Whether large individual parts or several small models at once - you can let off steam here without worrying about a lack of space or cracks in large prints.

Stability and precision in every movement

A robust die-cast aluminium frame can withstand even the most demanding printing operations, while the precise X-axis linear guide further increases printing accuracy.

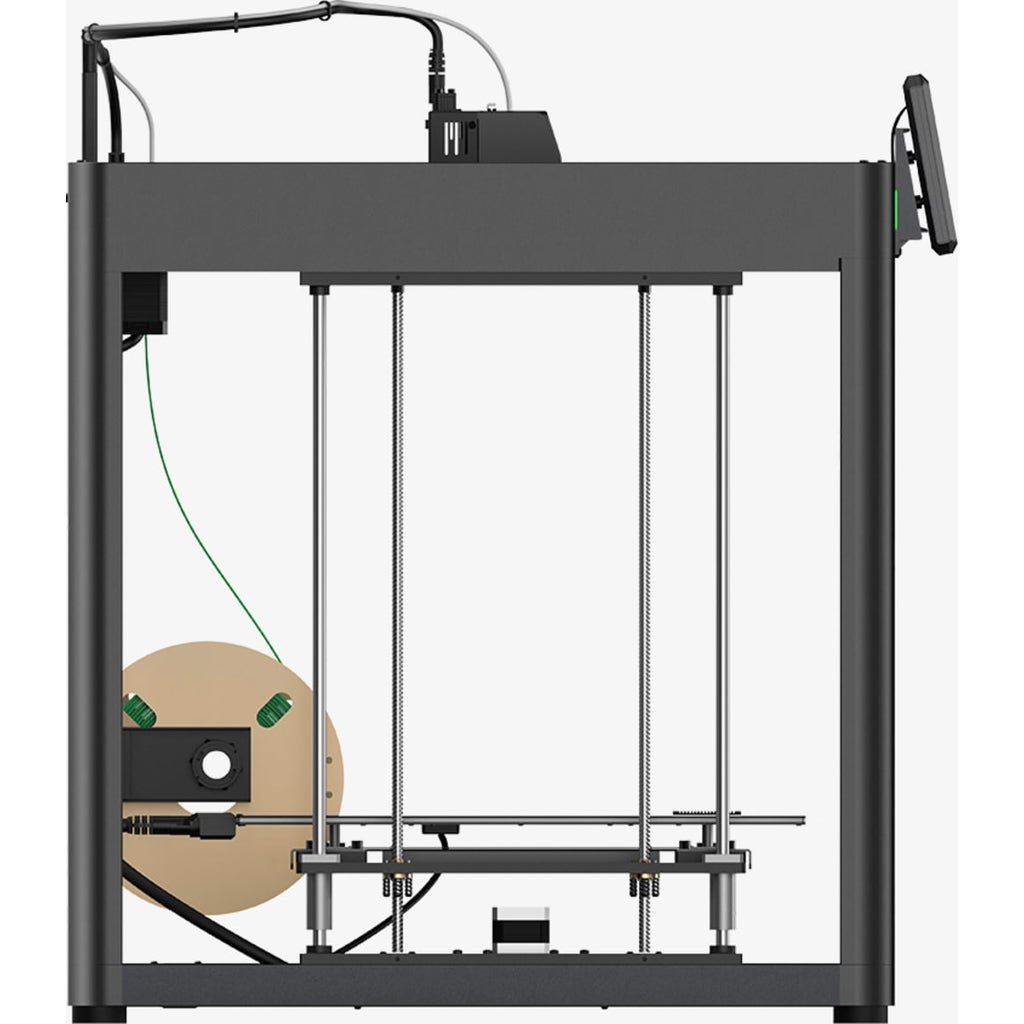

The Ender 5 Max also scores points with two independently driven Z-axes, each equipped with two lead screws. For additional precision, each Z-axis is supported by two linear guide rods. The result? An impressive load capacity of up to 10 kg - ideal for your large projects! No more layer shifts or annoying lines in the print image - smooth perfection is what counts here.

Lightning fast and time-saving

Speed meets efficiency: Thanks to the powerful 42-76 stepper motors on the X and Y axes, the Ender 5 Max achieves a maximum printing speed of up to 700 mm/s and an acceleration of 20000 mm/s2.

Reliable extruder for long-term use

Equipped with hardened gears, the Ender 5 Max 's extruder can handle up to 500 hours of continuous printing. Reliable around the clock, without constant maintenance or inspection.

Perfect print quality from the first layer

With the automatic 36-point levelling, the print bed adjusts automatically and precisely ¨C for a flawless first layer, without any manual intervention.

Full control with Creality Print Slicer

The new Creality Print Slicer offers over 40 preset filament profiles and the ability to centrally manage multiple printers. Ideal for print farms!

Additional features:

• Tri-colour printer status display,
• 1000 watt heating bed that heats up to 80 °C in just 200 seconds,
• Flexible epoxy printing plate requires a lower temperature for reliable adhesion (from 45 °C),
• Operating temperature 5¨C40 °C,
• Supports 100¨C240V input voltage,
• Built-in double safety fuses on the heated bed,
• Automatic loading and unloading of filaments,
• Active Input Shaping reduces vibrations,
• Silent mode with ¡Ü55 dB volume.

Technical specifications:
