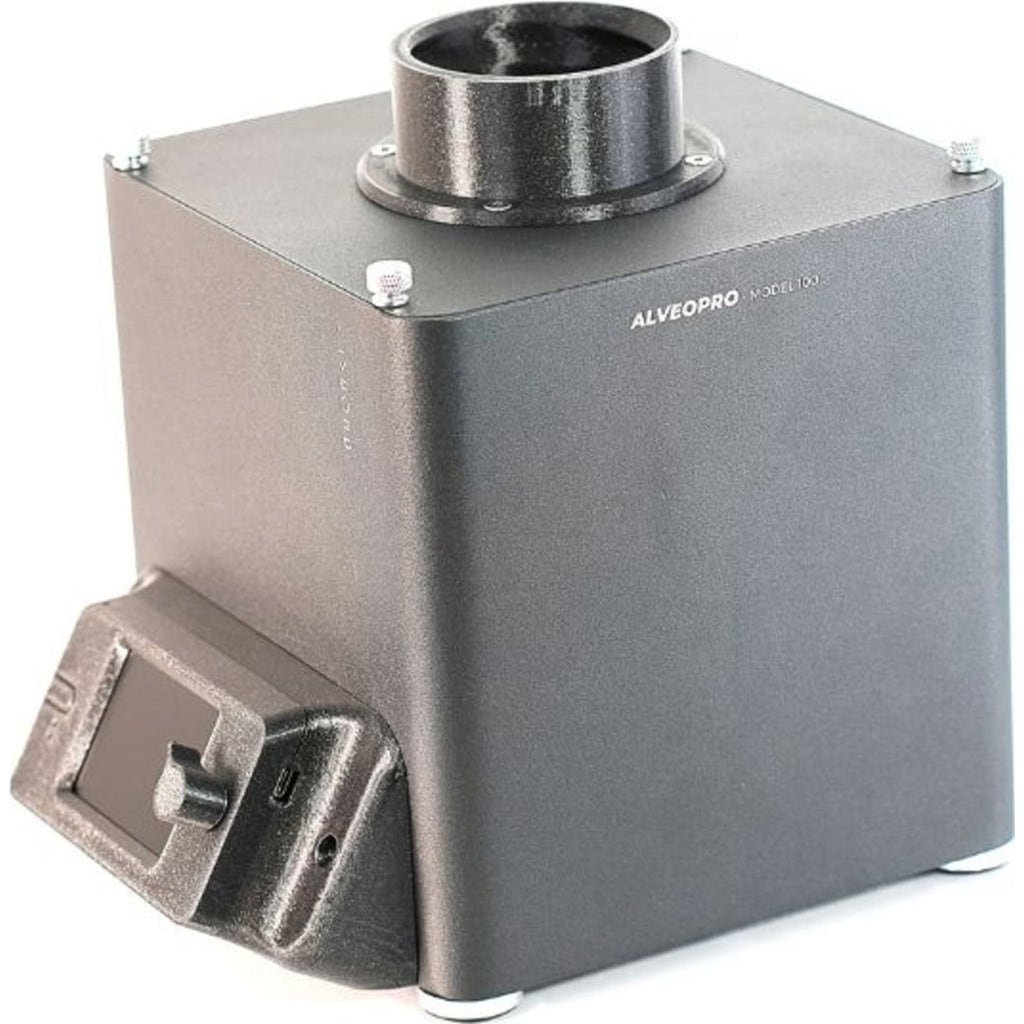

AlveoPRO

The AlveoPRO from Alveo3D is a certified exhaust system specifically designed to meet the challenges of 3D printing. This state-of-the-art device efficiently filters harmful emissions and ensures clean air quality in the workplace.

The AlveoPRO combines a powerful suction fan with a HEPA 14 filter and a special activated carbon blend to eliminate ultrafine particles and volatile organic compounds (VOCs). The HEPA H14 filter meets the highest filtration standards and captures 99.95% of particles 0.3 ¦Ìm and larger.

Flexible and robust design

Thanks to its lightweight, black anodised aluminium structure, the elegant AlveoPRO blends elegantly into any work environment. Anti-vibration pads ensure stability and minimise the risk of movement during printing. With a flexible suction tube that can be extended up to 3 meters, the AlveoPRO can be easily adapted to a wide variety of housings and printers.

Intelligent features for a better printing experience

The device is equipped with a user-friendly LCD display that allows you to control fan speed, filter status and other settings. An integrated safety system informs you of possible faults and a USB interface enables regular firmware updates to keep the device up to date.

M100 filter

The device uses a M100-HEPA 14 filter made of glass fibre that captures over 99% of nanoparticles below 100 nm. Combined with specially selected activated carbon, the filter reduces unpleasant odours and effectively treats volatile organic compounds.

Why choose AlveoPRO?

• Extended filter life: With a service life of at least 1500 hours, the AlveoPRO ensures improved productivity and easy maintenance.

• Highest filter efficiency: Tested efficiency of 99.92% for particles between 10 and 200 nm.

• Adjustable airflow: Adjustable from 10 to 80 m3/h to protect up to four nozzles simultaneously.

• Electronic safety: Detection of fan and filter errors as well as HEPA saturation.

• Easy maintenance: Convenient filter changes and regular firmware updates via USB.

Included in delivery:

• 1 x AlveoPRO case
• 1 x power supply for wall mounting, 24V (EU Plug)
• 1 x stretchable suction hose, 0.8-3 m
• 1 x suction hose connection plate (for axial fans 120 mm and 90 mm)
• 1 x M100 filter (with a plastic bag for disposal)
• 1 x USB cable
• 1 x housing connector
• 1 x Top Cover Adapter
• 4 x knurled screw
• 1 x 2.5 mm Allen key
• 4 x M3 countersunk screw, 10 mm
• 4 x M4 16mm Countersunk Head Screw
• 4 x M4 20mm Countersunk Head Screw
• 4 x M3 hexagon nut
• 4 x M4 hexagon nut

Technical specifications:
